Bell Shape Table & Bench Leg

Semi Exact

Select Leg Dimensions
Choose Your Metal
Color & Finish
Regular price
$125.00
Regular price
Sale price
$125.00
each

What you need to know

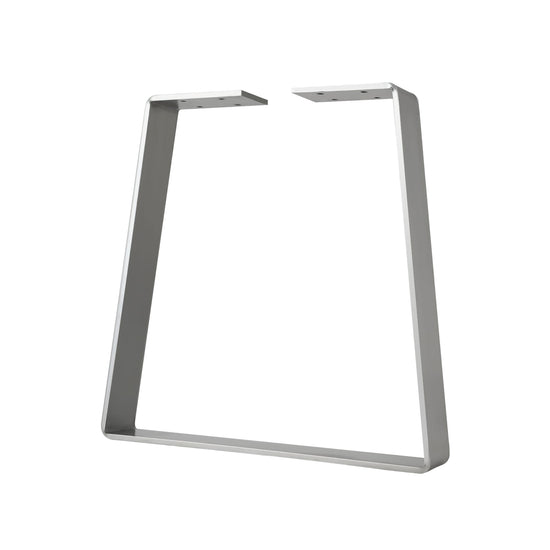

Bell-Shape Table & Bench Legs are a natural fit for desks, tables, and benches…but don't let your creativity stop there. From up-cycled chair bases to media solutions or stacked shelving, they give any project the right amount of bell-shape flair.

Made in our Nevada factory from recycled steel, each leg is built to last a lifetime.

Please select a different thickness above if your selected option displays as not available

Finishes from left to right top to bottom - Textured Matte Black, Buttercream, Moondust Grey, Glacier White, Metallic Silver, Lava Red, Casual Turtle Green, Midcentury Blue, Low Gloss Clear Coat, Raw

Product Details & Specifications


Three metal thicknesses for you to choose from:

  • Standard duty (0.25" thick)
  • Heavy duty (0.375" thick)
  • Super duty (0.5" thick)

Weight capacity (per pair):

  • Standard Duty (0.25" thick): Up to 500 lbs
  • Heavy Duty (0.375" thick): Up to 1,000 lbs
  • Super Duty (0.5" thick): Up to 1,500 lbs

Measure twice, cut once. We provide our specs right up front so you have the details you need to plan your build. If you have any questions about what size you should choose, just drop us a note.

A-Frame Tube Steel Table Leg - Product Specifications - Semi Exact

Click on drawing for larger image

Build Instructions

You can attach your Bell-Shape Legs with just a few simple tools. Position them flush with your surface, or move them in from the edge. With pre-formed slots, they're easy to attach. Watch our build below.



Here are a few basic steps to help you get started.

  • Turn your project surface and the Bell-Shape Legs upside down. Place the legs on top of the surface, and use a tape measure to position them where you'd like them. (Be careful to keep the legs steady.) Mark each slot with a pencil.
  • Remove the Bell-Shape Legs and pre-drill holes through each pencil marking into your surface. (Pre-drilling makes things easier and helps avoid damaging your surface material.)
  • Reposition the Bell-Shape Legs and drive fasteners through each hole. Fasteners will need to be long enough to account for the thickness of the leg and about half the surface. (If attaching legs to concrete or metal, use concrete or metal fasteners.)
  • Confirm the Bell-Shape Legs are securely attached, then turn your project right side up. (Have someone help you lift larger projects to prevent pulling fasteners out of the surface material.)

Product Care

Clear & Color Powder Coats

Our powder-coat finishes are scratch-resistant and rust-proof, so they don't need much care. Just be sure to touch up any exposed steel if you happen to drag them across rough surfaces, such as pavers, or scrape them with something sharp.

Raw Steel Care

Raw steel arrives with a thin layer of residue to protect it from rust while in transit. Sealing your raw steel with wax, paint, or a clear coat will keep it looking its best (or you can let it develop a natural rusted patina).

  • Raw steel legs ship with wax for sealing
  • Apply a rust-inhibitive clear coat rather than wax if using outdoors
  • Sprayed finishes work best for paint or clear coat (use products that are suitable for metal)

Shipping & Returns

As a company that focuses on creating custom sizes and that manufactures to your specification, returns can get a little tricky. We can accept returns for Quick Ship items within 30 days of delivery.

We do not currently accept international returns.

For our full return policy, please go here.

Ships in: 3 - 7 Business Days

Mix & Match. Dining Table.

With a few sheets of finished plywood you can make this mix and match dining table.

Bell-Shaped Curves.

With different sizes, metal thicknesses, and colors, it's easy to mix things up for any space. Choose the industrial look of unfinished steel or opt for the polished gleam of a designer finish. Our Bell-Shape Legs are hand-crafted from 2.5"-wide recycled flat bar steel in our Nevada factory. With no welds, they feature a streamlined design and beautiful bell-shaped bends.
